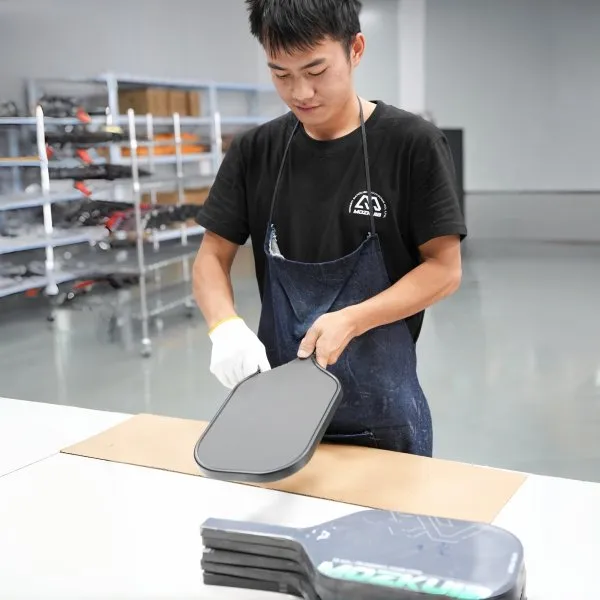

Before a paddle reaches the press, its face sheets, core and handle structure are already assembled. After molding come edge finishing, printing, the edge guard, final finishing and factory checks.
The 10-step hot-press pickleball paddle manufacturing process

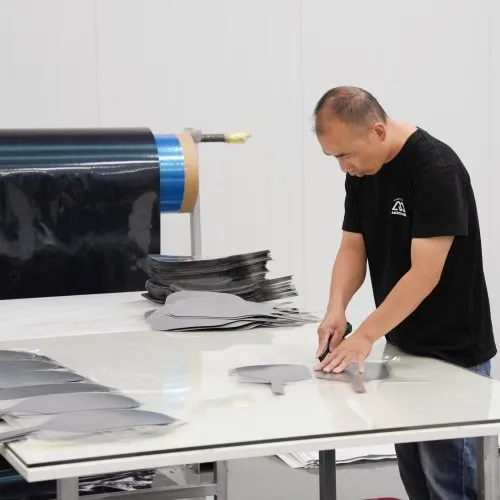

Cut the face sheets
Face sheets are cut to the required paddle outline before they are assembled with the core and handle structure.

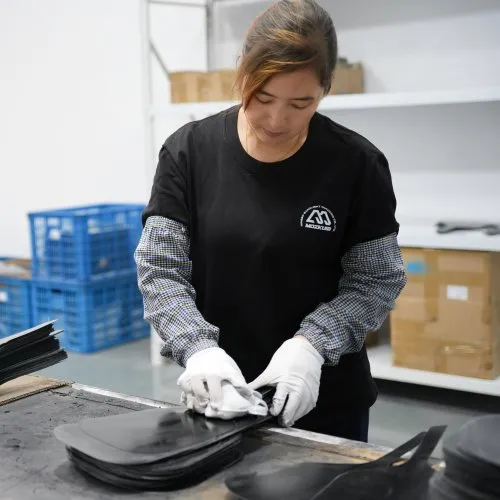

Prepare and clean the face sheets
The surface of each face sheet is wiped before assembly. Edge sanding happens later, after molding.

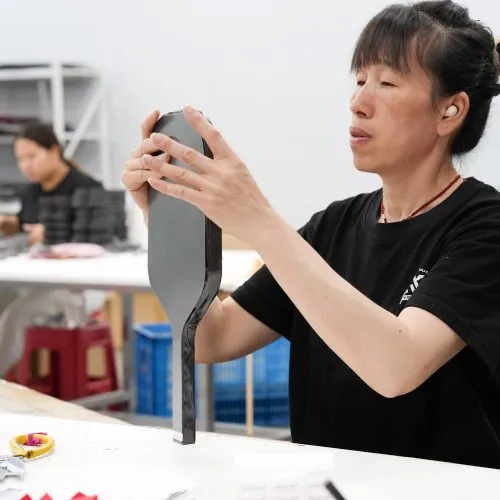

Assemble the paddle structure
The face sheets, core and handle structure are aligned and assembled before the paddle enters the mold.

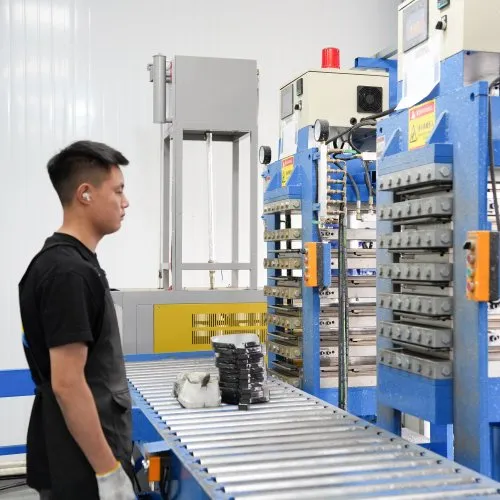

Form the paddle in the mold
The assembled structure is placed in the mold and formed under controlled heat and pressure. For the process shown here, the hot-press molding stage is the thermoforming step.

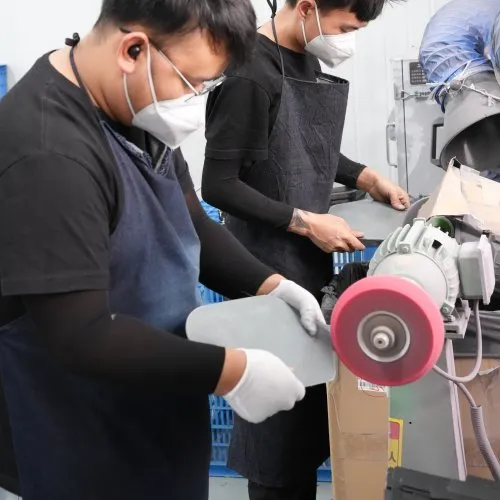

Finish the edges
After molding, excess material and burrs are removed. The perimeter is sanded flat and smooth so the edge guard can sit cleanly around the paddle later.

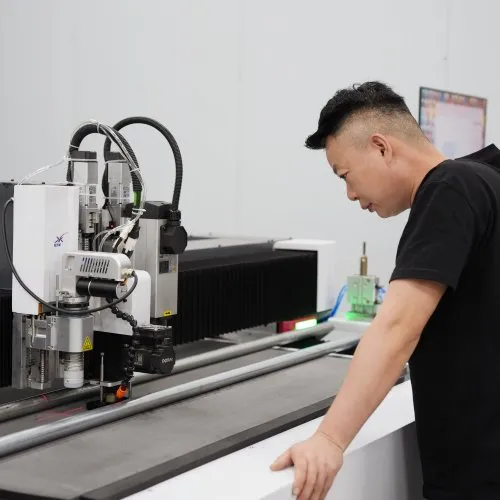

Print the approved artwork
Artwork is printed after the paddle body has been formed and the perimeter finished. Position and color are checked against the approved sample before the edge guard is fitted.

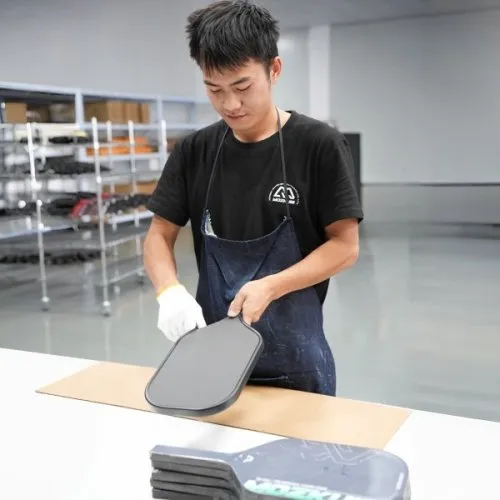

Fit the edge guard
The edge guard is fitted around the finished perimeter. A smooth, even edge from Step 5 helps the guard sit evenly around the paddle.

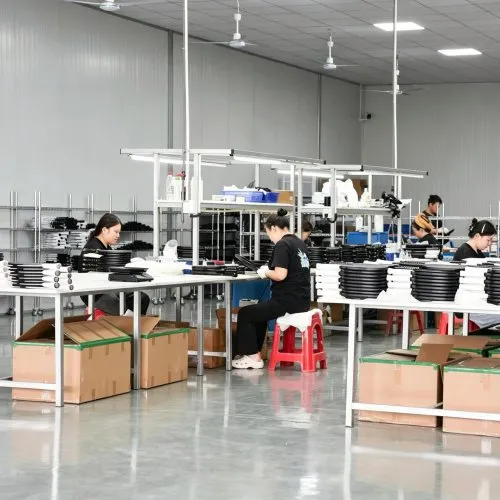

Finish and pack the paddle
After the edge guard is fitted, the paddle is checked for printing, color, edge condition and visible finish, then labeled and packed.

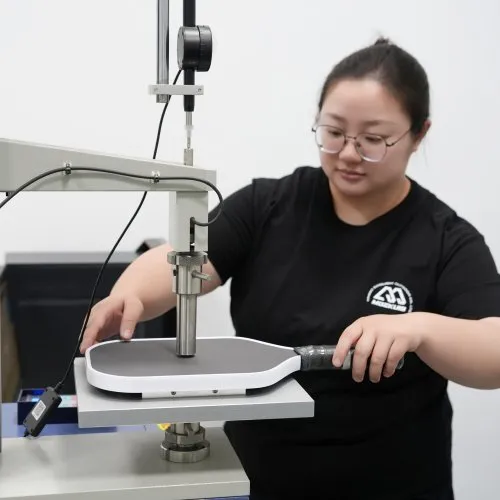

Run the deflection test
Finished paddles are sampled for deflection. The sampling plan depends on the model and order.

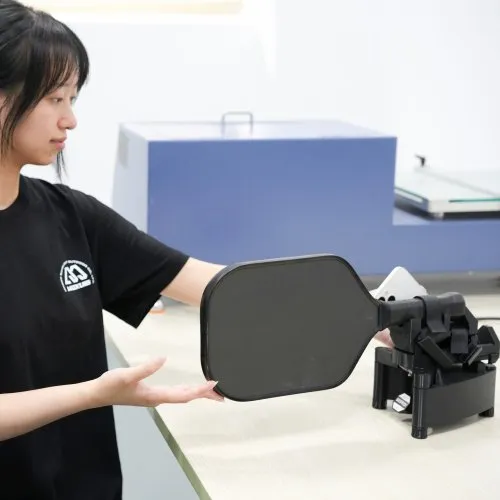

Check swing and surface friction
Sampling may also include swing and surface-friction checks.
Across the batch, routine checks include weight, dimensions, thickness, construction, artwork, color and edge condition. Instrument checks such as deflection, swing and surface friction are sampled according to the model and order.
Factory sampling and formal certification are different. USA Pickleball's current manufacturer test plan includes paddle dimensions, coefficient of friction, deflection, reflection/gloss and roughness. See the current paddle test plan.
